Battery powered floor machines are essential for facility maintenance crews to get the job done. This is why many floor sweeper/scrubbers utilize U.S. Battery deep-cycle batteries. The company’s line of 6V and 12V batteries can maintain peak capacity for longer periods between charges, which results in greater vehicle reliability and lower annual operating costs. With the company’s exclusive XC2™ formulation and Diamond Plate Technology®, these battery plates transport a greater watt-hour per liter and watt-hour per kilogram, producing the best flooded lead-acid batteries on the market. All of our Flooded Lead Acid Batteries are Handcrafted in the USA.

FEATURES:
XC2™ Formulation: The industry’s most efficient uniform layers of tetrabasic sulfate crystals (battery cell-plate paste) enable U.S. Battery products to achieve the highest initial capacity and highest rated capacity on the market.

Diamond Plate Technology®: The most efficient cell paste requires an effective structure to hold it in position. U.S. Battery’s Diamond Plate Technology® is a unique cell plate design that when combined with XC2™ Formulation, creates the most efficient cell-plate design in the industry. This translates to greater overall capacity, longer battery life and the ability to reach peak capacity in fewer cycles.

Rugged Construction: Made with a tough polypropylene exterior case and hand cast heavy-duty connector lugs, U.S. Battery Floor Machine Deep Cycle Batteries can take the rigors of use in a variety of vehicles.

SpeedCap® Venting Positive Locking System: U.S. Battery makes it easy to conduct maintenance with a removable vent system that’s easy to operate and locks in place.

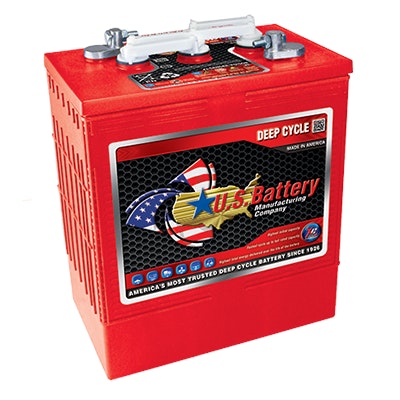

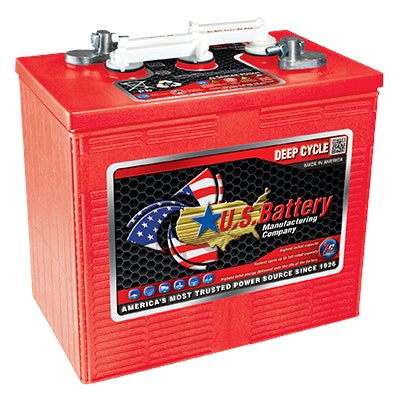

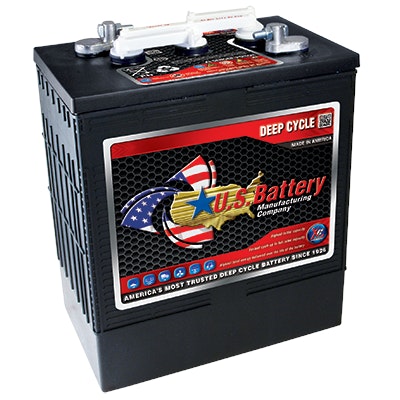

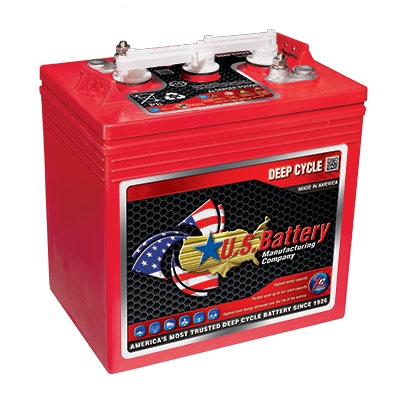

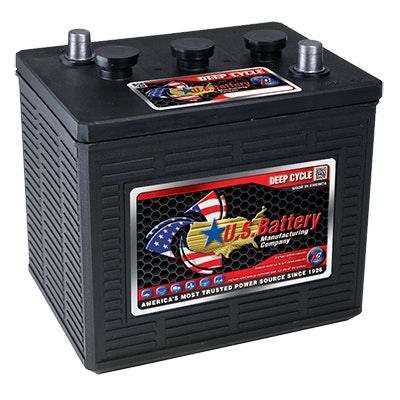

6-Volt Flooded Lead Acid

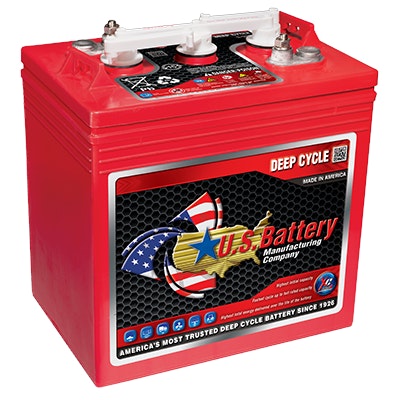

US 1800 XC2

20 Hour Rate: 208
Minutes of Discharge @ 75 Amps: 107
Minutes of Discharge @ 25 Amps: 392

Length: 10 1/4” (260mm)
Width: 7 1/8” (181mm)
Height: 11 1/4” (286mm)

US 2000 XC2

20 Hour Rate: 220
Minutes of Discharge @ 75 Amps: 115
Minutes of Discharge @ 25 Amps: 445

Length: 10 1/4” (260mm)
Width: 7 1/8” (181mm)
Height: 11 1/4” (286mm)

US 2200 XC2

20 Hour Rate: 232
Minutes of Discharge @ 75 Amps: 122
Minutes of Discharge @ 25 Amps: 474

Length: 10 1/4” (260mm)
Width: 7 1/8” (181mm)
Height: 11 1/4” (286mm)

US 125 XC2

20 Hour Rate: 242
Minutes of Discharge @ 75 Amps: 140
Minutes of Discharge @ 25 Amps: 517

Length: 10 1/4” (260mm)
Width: 7 1/8” (181mm)
Height: 11 1/4” (286mm)

US 145 XC2

20 Hour Rate: 251
Minutes of Discharge @ 75 Amps: 154
Minutes of Discharge @ 25 Amps: 562

Length: 10 1/4” (260mm)
Width: 7 1/8” (181mm)
Height: 11 7/8” (302mm)

US 250E XC2

20 Hour Rate: 225
Minutes of Discharge @ 75 Amps: 140
Minutes of Discharge @ 25 Amps: 505

Length: 11 5/8” (295mm)
Width: 7 1/8” (181mm)
Height: 11 5/8” (295mm)

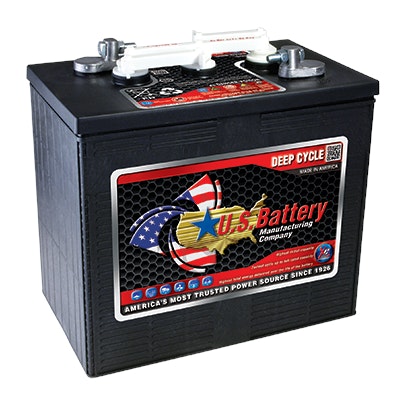

US 250 XC2

20 Hour Rate: 255
Minutes of Discharge @ 75 Amps: 159
Minutes of Discharge @ 25 Amps: 570

Length: 11 5/8” (295mm)
Width: 7 1/8” (181mm)
Height: 11 5/8” (295mm)

US 250HC XC2

20 Hour Rate: 280
Minutes of Discharge @ 75 Amps: 178
Minutes of Discharge @ 25 Amps: 635

Length: 11 5/8” (295mm)
Width: 7 1/8” (181mm)
Height: 11 5/8” (295mm)

US 305E XC2

20 Hour Rate: 290
Minutes of Discharge @ 75 Amps: 182
Minutes of Discharge @ 25 Amps: 660

Length: 11 7/8” (302mm)
Width: 7 1/8” (181mm)
Height: 14 5/8” (371mm)

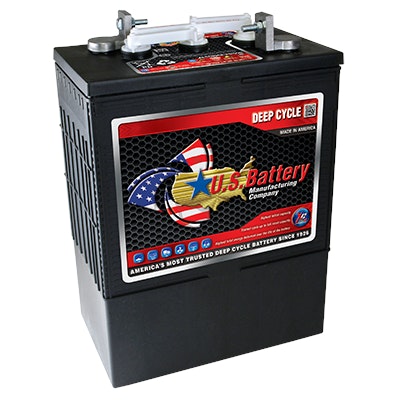

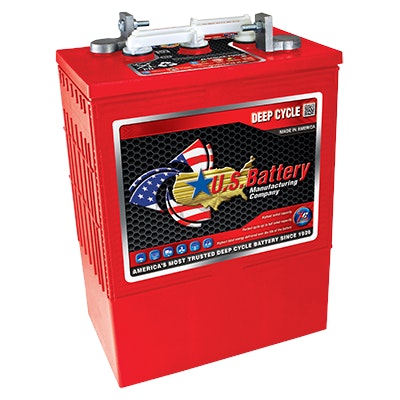

US 305 XC2

20 Hour Rate: 310
Minutes of Discharge @ 75 Amps: 195
Minutes of Discharge @ 25 Amps: 715

Length: 11 7/8” (302mm)
Width: 7 1/8” (181mm)
Height: 14 5/8” (371mm)

US 305HC XC2

20 Hour Rate: 340
Minutes of Discharge @ 75 Amps: 215
Minutes of Discharge @ 25 Amps: 790

Length: 11 7/8” (302mm)
Width: 7 1/8” (181mm)
Height: 14 5/8” (371mm)

US L16E XC2

20 Hour Rate: 360
Minutes of Discharge @ 75 Amps: 198
Minutes of Discharge @ 25 Amps: 795

Length: Without Handles– 11 7/8” (302mm)
Length: With Handles– 12 7/16″ (315mm)
Width: 7 1/8” (181mm)
Height: 16 3/4” (425mm)

US L16 XC2

20 Hour Rate: 385
Minutes of Discharge @ 75 Amps: 225
Minutes of Discharge @ 25 Amps: 865

Length: Without Handles– 11 7/8” (302mm)
Length: With Handles– 12 7/16″ (315mm)
Width: 7 1/8” (181mm)
Height: 16 3/4” (425mm)

US L16HC XC2

20 Hour Rate: 420
Minutes of Discharge @ 75 Amps: 250
Minutes of Discharge @ 25 Amps: 965

Length: Without Handles– 11 7/8” (302mm)
Length: With Handles– 12 7/16″ (315mm)
Width: 7 1/8” (181mm)
Height: 16 3/4” (425mm)

US 1HC XC2

20 Hour Rate: 95
Minutes of Discharge @ 75 Amps: 44
Minutes of Discharge @ 25 Amps: 165

Length: 8 3/4” (222mm)
Width: 6 7/8” (175mm)
Height: 9” (228mm)

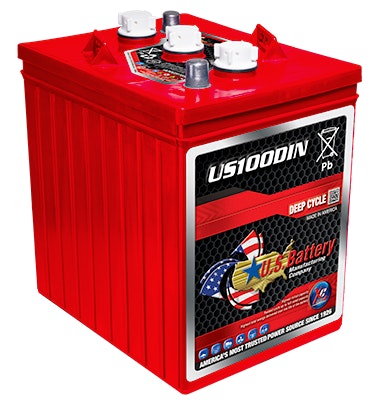

US 100DIN XC2

20 Hour Rate: 247
Minutes of Discharge @ 75 Amps: 135
Minutes of Discharge @ 25 Amps: 520

Length: 9 5/8” (244mm)
Width: 7 1/2” (191mm)
Height: 10 7/8” (276mm)

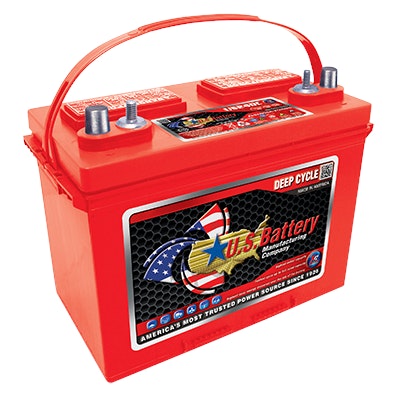

12- Volt Flooded Lead Acid
US 24DC XC2

20 Hour Rate: 85
Minutes of Discharge @ 75 Amps: 38
Minutes of Discharge @ 25 Amps: 145
CCA @ 0 Degrees (F) -18 Degrees (C): 400

Length: 10 7/8” (276mm)
Width: 6 3/4” (171mm)
Height: 9 3/8” (238mm)

US 27DC XC2

20 Hour Rate: 105
Minutes of Discharge @ 75 Amps: 54
Minutes of Discharge @ 25 Amps: 205
CCA @ 0 Degrees (F) -18 Degrees (C): 575

Length: 12 3/4” (324mm)
Width: 6 3/4” (171mm)
Height: 9 3/4” (248mm)

US 31DC XC2

20 Hour Rate: 130
Minutes of Discharge @ 75 Amps: 59
Minutes of Discharge @ 25 Amps: 225
CCA @ 0 Degrees (F) -18 Degrees (C): 620

Length: 13” (330mm)
Width: 6 3/4” (171mm)
Height: 9 5/8” (243mm)

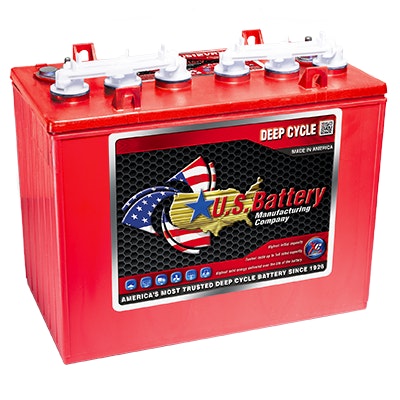

US 12VE XC2

20 Hour Rate: 145
Minutes of Discharge @ 56 Amps: 95
Minutes of Discharge @ 25 Amps: 270

Length: Without Handles– 13 1/8” (333mm)
Length: With Handles– 14″ (355mm)
Width: 7 1/16” (179mm)
Height: 11 3/8” (289mm)

US 12VRX XC2

20 Hour Rate: 155
Minutes of Discharge @ 56 Amps: 110
Minutes of Discharge @ 25 Amps: 292

Length: Without Handles– 13 1/8” (333mm)
Length: With Handles– 14″ (355mm)
Width: 7 1/16” (179mm)
Height: 11 3/8” (289mm)

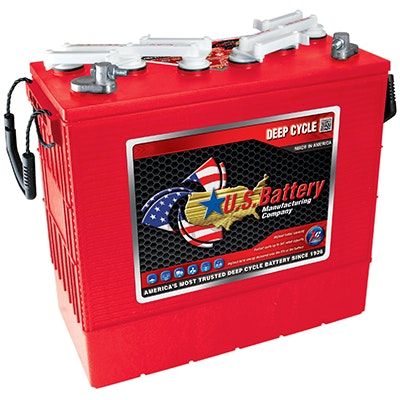

US 185E XC2

20 Hour Rate: 185
Minutes of Discharge @ 75 Amps: 93
Minutes of Discharge @ 25 Amps: 355

Length: 15 5/8” (397mm)
Width: 7 1/16” (179mm)
Height: 14 7/8” (378mm)

US 185 XC2

20 Hour Rate: 200
Minutes of Discharge @ 75 Amps: 106
Minutes of Discharge @ 25 Amps: 398

Length: 15 5/8” (397mm)
Width: 7 1/16” (179mm)
Height: 14 7/8” (378mm)

US 185HC XC2

20 Hour Rate: 220
5 Hour Rate: 172
Minutes of Discharge @ 75 Amps: 117
Minutes of Discharge @ 56 Amps: 167
Minutes of Discharge @ 25 Amps: 443

Length: 15 5/8” (397mm)
Width: 7 1/16” (179mm)
Height: 14 7/8” (378mm)

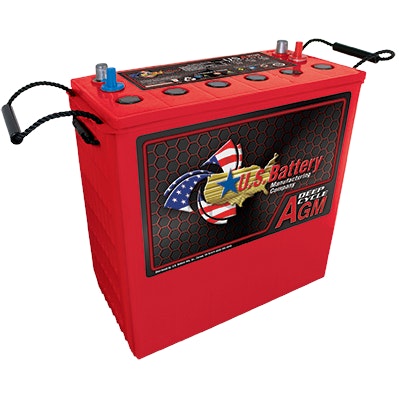

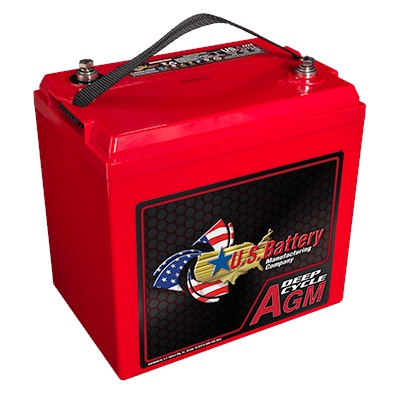

6-Volt Sealed AGM
US AGM 2000

20 Hour Rate: 210
Minutes of Discharge @ 75 Amps: 120
Minutes of Discharge @ 25 Amps: 460

Length: 10.24” (260mm)
Width: 7.09” (180mm)
Height: 10.79” (274mm)

US AGM 2224

20 Hour Rate: 224
Minutes of Discharge @ 75 Amps: 135
Minutes of Discharge @ 25 Amps: 460

Length: 10.24” (260mm)
Width: 7.09” (180mm)
Height: 9.96” (253mm)

US AGM 305

20 Hour Rate: 350
Minutes of Discharge @ 75 Amps: 240
Minutes of Discharge @ 25 Amps: 820

Length: 11.61” (295mm)
Width: 7.09” (180mm)
Height: 14.49” (368mm)

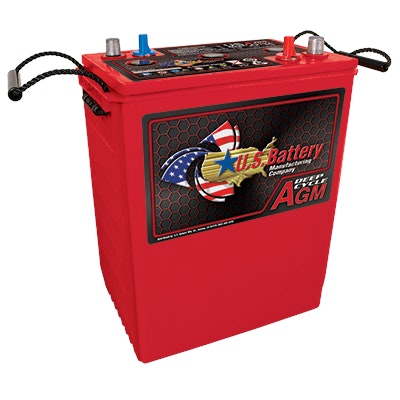

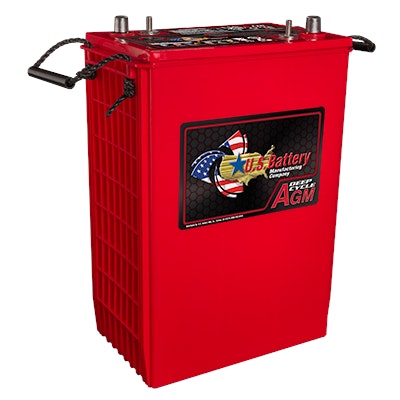

US AGM L16

20 Hour Rate: 400
Minutes of Discharge @ 75 Amps: 265
Minutes of Discharge @ 25 Amps: 925

Length: 11.61” (295mm)
Width: 7.09” (180mm)
Height: 16.85” (428mm)

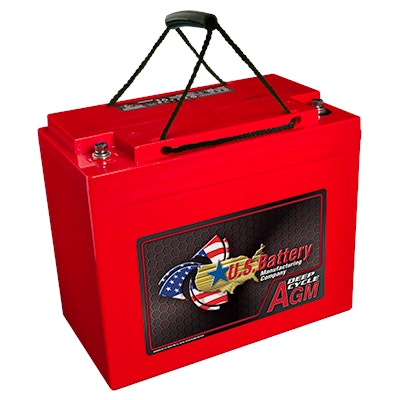

12-Volt Sealed AGM

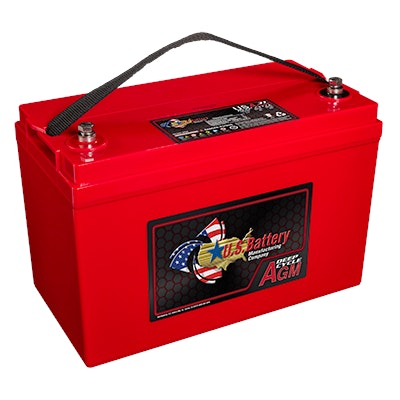

US AGM 31

20 Hour Rate: 117
Minutes of Discharge @ 75 Amps: 45
Minutes of Discharge @ 25 Amps: 207

Length: 12.9” (328mm)
Width: 6.77” (172mm)
Height: 8.66” (220mm)

US AGM 12V150

20 Hour Rate: 150
Minutes of Discharge @ 75 Amps: 90
Minutes of Discharge @ 25 Amps: 323

Length: 12.87” (327mm)
Width: 7.09” (180mm)
Height: 10.79” (274mm)

US AGM 12V150

20 Hour Rate: 245
Minutes of Discharge @ 75 Amps: 145
Minutes of Discharge @ 25 Amps: 535

Length: 15.24” (387mm)
Width: 7.09” (180mm)
Height: 14.49” (368mm)
